American Data Supply carries the GW-23 series switch whcih BATM/Telco Systems GW-282 series
Integrated IP media gateway is the most efficient, flexible, and powerful device
in its class. It’s capable of supporting various combinations of 2, 4 and
8 analog voice lines (VoIP FXS ports), 8 or 16 10/100BaseTX Ethernet ports and
optical Fast/ Gigabit Ethernet uplink. The GW-282 gateways cover the spectrum
of requirements for the enterprise VoIP environment and remote connectivity for
Fiber-to-the-Home/Apartment (FTTH/A) applications.
Mar-25-2004
Telco Systems EdgeGate CPE 282 VoIP Media Gateway for Consumers Gets Nod from
USDA's Rural Utilities Service for Fiber-To-The-Home Use in Rural Broadband Infrastructure
Programs
Outdoor/Indoor
IP Media Gateway for Voice, Video and Data services convergence and FTTH applications
BATM/Telco
Systems GW-282 series Integrated IP media gateway is the most efficient, flexible,
and powerful device in its class. It’s capable of supporting various combinations
of 2, 4 and 8 analog voice lines (VoIP FXS ports), 8 or 16 10/100BaseTX Ethernet
ports and optical Fast/ Gigabit Ethernet uplink. The GW-282 gateways cover the
spectrum of requirements for the enterprise VoIP environment and remote connectivity
for Fiber-to-the-Home/Apartment (FTTH/A) applications.

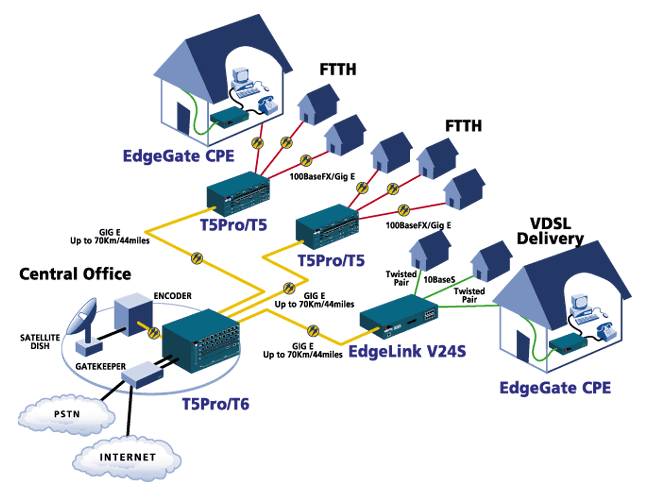

Fiber-to-the-Home/Fiber
To The Apartment (FTTH/A)
The
GW-282’s flexible architecture enables it to be the only IP gateway platform
that supports a wide variety of optical fiber uplinks, it can be configured with
either a Fast or Gigabit Ethernet transceiver. Unique advantage of the GW-282
is supporting Single Fiber using Bi-Directional transceivers, thus saving 50%
on fiber cost.

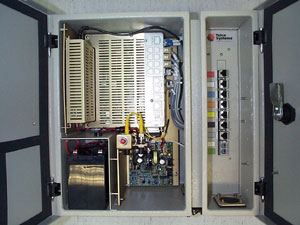

Outdoor
rugged solution
The
GW-282 can be deployed indoors (residence or business) or outdoors in an environmentally
controlled cabinet. This cabinet provides separate lock-secured access gateways
for the Service Provider and end user. The cabinet is designed to support Automated
Meter Reading and is equipped to support battery backup for providing Lifeline
POTS. The outdoor version of GW-282 has optional support of RF video.
Voice
(VoIP), Video and Data convergence
The
GW-282 series is the ideal CPE solution for Service Providers looking to deliver
voice, video and data over fiber to the end user. The GW-282 series support 802.1p
QoS, 802.1q VLAN tagging, Spanning Tree Protocol and IGMPv2. The GW-282 supports
all current VoIP signaling protocols including SIP, MGCP and H.323. Other protocols
are optional and can be enabled. Soon, VoIP support will be delivered with an
optional VoIP upgrade kit. This adherence to standards allows users to have maximum
interoperability with existing network infrastructure.
Small
Medium Enterprises (SME) usage
The
GW-282 series is the ultimate solution for Small Medium Enterprises. Users can
easily set up phone calls through the IP network while simultaneously using the
gateway as a high-bandwidth enterprise network connection.
Manageability
GW-282
can be managed by SNMP, HTTP, Telnet, local terminal and download of configuration
and new software by DHCP server. In addition, the GW-282 series, as all BATM/Telco
Systems IP platforms, support BiNOSCenter, the BATM/Telco Systems EMS/NMS Element/Network
Management System.
Benefits
and Features
Integrated
Voice (VoIP), Video and Data IP media gateway
Indoor and outdoor (rugged)
versions
Integrated 100/1000 Mbps fiber- SFP uplink variety including:
•
100BaseX of MM, SM and Bi-Directional
• 1000BaseX of pluggable SFP (miniGBIC)
Special options including: EPON, CWDM, DWDM
Voice ports – 2-, 4-
or 8-port versions
Enhanced Video capabilities
Data 10/100BaseTX switched
ports - 8- or 16-port versions
Full support for ITU H.323, MGCP and SIP, MEGACO
optional
Enhanced L2 switching capabilities
Wire speed performance
Integrated
Web server
Automatic tone generation: Dial, Busy, Ring-Back
DTMF detection
and generation
Voice activity detection & prioritization
IGMP Snooping
Automatic configuration (BOOTP)
Remote maintenance
Special features
on Outdoor unit:
• Built in charger + Battery Back up
• Extended
temperature
• Meter reading
• Lifeline POTS
• Many
more...
Part
Number Description
GW-231 VOIP gateway, 2 voice ports, 4 10/100BaseTX
ports
GW-231-LC VOIP gateway, 2 voice ports, 3 10/100BaseTX port, 1 100BaseFX
port (LC, multimode, 2km)
GW-231-LC-LD VOIP gateway, 2 voice ports, 3 10/100BaseTX
port, 1 100BaseFX port (LC, Singlemode, 15km)
GW-231-MT VOIP gateway, 2 voice
ports, 3 10/100BaseTX port, 1 100BaseFX port (MT, multimode, 2km)
GW-231P
VOIP gateway, 2 voice ports, 4 10/100BaseTX ports, with Power over LAN
GW-231-VDSL
VoIP over VDSL gateway, 2 voice (VoIP) ports, 3 10/100BaseTX ports, 1 analog telephone
port, 1 VDSL uplink
GW-231-VF VOIP gateway, 2 voice ports, 3 10/100BaseTX
port, 1 100BaseFX port (VF-45, multimode, 2km)
Compatibility
ITU H.323v2
ITU G.723.1
ITU G.711
ITU G.729* (one port)
ITU FXS
IEEE 802.1p
IEEE 802.3
IEEE 802.3u
MGCP
SIP
RFC 1812 IPv4 Routing*
RFC 2068 HTTP
LAN Interface
10/100BaseTX
Connector: RJ-45
Transmission: Full/Half Duplex
LAN Uplink
100BaseFX
Connector: LC, MT-RJ, VF-45
Transmission: Full Duplex
LAN Cabling
10BaseT
UTP, Cat. 3,4,5, 100m.
100BaseTX
UTP, Cat. 5, 100m
100BaseFX
Fiber, 62.5/125 micron, 14dB optical budget, 2km
Singlemode
Fiber 9/125 micron, 9dB optical budget, 15km
Telephony Interface
Analog; Connector: RJ-11 (POTS)
Switching Characteristics
Technology: ASIC based parallel Store
and Forward
Address Table: 1K MAC addresses
Forwarding
Rate: 10Mbps – up to 14,880 pps
100Mbps – up to 148,800 pps
IP routing*
Static routing
DHCP relay, NAT
NMS community password
Indicators
Management: Green flashing (CPU traffic)
Voice: Green
(Gatekeeper/Controller connection)
Ready: Green flashing
Power: Green
Management
SNMP Client MIBs: MIB II, Private MIB
Internet: Web
based management
Interfaces: Telnet, SNMP, Web, Remote Auto Configuration:
DHCP, HTTP, RS 232-RJ45
SW Download: via TFTP
General
Dimensions:
(H) 35 * (L) 194 * (W) 106 mm
(1.4”*7.6”*4.4”)
Power:
12 (10-14) VDC External power supply
Weight: 1 kg (2.2 lb)
Operating
Temperature: 0º ~ 45º C ( 32º - 113º F)
Operating Humidity:
10% - 90% non-condensing
Emission and Safety Regulations
FCC Class B,
UL, CUL, CE
EdgeGate
CPE GW-23 Series Switch The GW-23 series Voice over IP media gateway
is the most efficient, flexible, and powerful device in its class. Capable of
supporting various combinations of up to 2 analog voice lines and up to 4 10/100
Mbps Ethernet ports
