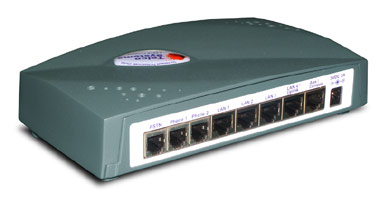

Mini EdgeGate Voice over IP and FTTH Media Gateway The
EdgeGate GW-232 series voice over IP and FTTH media gateways are the most efficient,
flexible, and powerful devices in their class. With operations established worldwide,
many satisfied end-users benefit from the EdgeGate family use by converging broadband
services such as voice, video and data over a single IP infrastructure. The GW-232
supports various configurations of up to 2 analog voice lines and up to 4 10/100
Mbps Ethernet ports, including 100 Mbps Ethernet optical uplink. Thus, the EdgeGate
GW-232 series VoIP and FTTH gateways cover the entire spectrum of requirements
for both enterprise VoIP environment and remote office connectivity.
Benefits and Features
* Integrated Voice (VoIP), Video and Data IP media gateway Fiber-to-the-Home- Fiber To The Apartment (FTTH/A). The EdgeGate’s flexible architecture enables it to be the only VoIP gateway platform that supports a variety of transmission technologies, such as 100Mbps copper or fiber single-mode, multi-mode and even bi-directional (single fiber usage) fiber optics. Fiber support, with 100Mbps bandwidth, enables the end user to enjoy any broadband bandwidth-hungry application, such as Video-On-Demand, and enables the service provider to provide this service in wide distribution area, while maintaining high quality of service. Voice
(VoIP), video and data convergence. The EdgeGate GW-232 series is the ideal CPE
solution for service providers looking to deliver voice, video and data over copper/fiber
to the end user. As these services are delivered over the same network infrastructure,
it is imperative that CPE devices support higher-level Ethernet standards to ensure
the successful delivery of voice, video and data. The EdgeGate GW-232 series support
802.1p QoS (voice over data & video priority), 802.1q VLAN tagging, Spanning
Tree Protocol and IGMPv2 (for video streaming applications). The EdgeGate GW-232
currently supports all present VoIP protocols including SIP, MGCP and H.323. Small
and medium enterprises usage. The EdgeGate GW-232 series is the unequivocal solution
for small and medium enterprises, due to its unparalleled combination of reliability,
functionality, and economy. Users can easily set up phone calls through the IP
network while Manageability. GW-232 can be managed by CLI, SNMP, HTTP, Telnet, local terminal and download of configuration and new software via DHCP server. In addition, the EdgeGate GW-232 series, like all Telco Systems IP platforms, is supported by BiNOSCenter, the Telco Systems'Element/Network Management System.

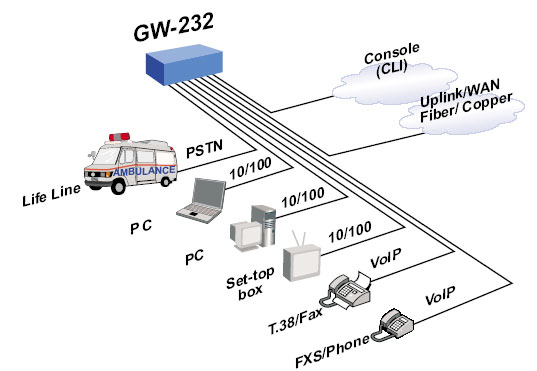

Applications-Network Diagram
West Coast (866) 342-3721 ------East Coast (866) 650-DATA
Based in Foxboro, Massachusetts, Telco Systems is committed to leading the industry in the development of transport, access, and packet products for carriers' COs, Co-Los, and POPs, as well, enterprise solutions for FTTH, SOHO, hospitality, education, and MTU/MDU. Integrating circuit- and packet-switched technologies onto flexible platforms ensures cost-effective operation Multi
