The Basics Of Fiber Optic Media Converters and How Do Fiber Optic Media Converters Work?

What are Fiber Optic Media Converters and how do fiber optic media converters work will be covered in detail on this page. Due to security issues, distince limitations and bandwidth issues fiber opic cable and fiber optic networks overwhelmingly are far superior to copper networks in many all areas.

Fiber Optic Media Converters are devices that simply receive data signals from one media such as CAT 6 or CAT 5 cable and convert and transmit them to another other a fiber optic media. For example fiber optic media converters can convert signals transmitted on a copper cable to signals that run on fiber. Since Fiber Optic Media Converters function as physical layer networking devices, they remain completely transparent to other networking devices and any upper-level protocols.More about FIber Optic Media Converters below:
Since a media converter is a physical layer networking device, it:

* simply converts data from one medium to another on a bit-by-bit basis
* doesn't look at addresses or other data
* doesn't recognize or react to collisions

MRV Optical Media Converters

Therefore a media converter is different from a bridge, a switch, or a repeater.

A stand alone media converter is a small device with two media-dependent interfaces and a power supply. It can be installed almost anywhere in a network. The style of connector depends on the selection of media to be converted by the unit. In a Fast Ethernet environment, a 100Base-TX to 100Base-FX Media Converter connects a 100Base-TX twisted-pair device to a 100Base-FX compliant single or multimode fiber port that has a fiber-optic connector. In a Gigabit Ethernet, a Media Converter is commonly deployed to convert multimode to single-mode fiber.

FIber Optic Media Converters can function in either half-duplex or full duplex mode. Full duplex Ethernet over UTP runs at 20 or 200Mbps, while half-duplex Ethernet over UTP runs at either 10 or 100 Mbps. Full duplex Ethernet is especially valuable in linking two switches or connecting a switch to a file server. No adjustments are necessary when using either mode. A Media Converter will automatically sense which mode is in operation.

To learn more about networking and media converters, please browse our fiber optic transmission section.

We provided this fiber optic basics page as a brief overview of how Fiber Optic Cable Advantages over Copper Cable as well as a resource for other fiber optic cable and technology developments and basics such as fiber optic cable design and WDM's or wave division multiplexing where you can get "more bandwidth for your buck" without adding additional fiber optic cable. Always feel free to come back to our site for additional information on fiber optic technology. We will also always be glad to help you with any questions you may have regarding fiber optics. Fiber optic cable functions as a "light guide," guiding the light introduced at one end of the cable through to the other end. The light source can either be a light-emitting diode (LED)) or a laser.The light source is pulsed on and off, and a light-sensitive receiver on the other end of the cable converts the pulses back into the digital ones and zeros of the original signal. Even laser light shining through a fiber optic cable is subject to loss of strength, primarily through dispersion and scattering of the light, within the cable itself. The faster the laser fluctuates, the greater the risk of dispersion. Light strengtheners, called repeaters, may be necessary to refresh the signal in certain applications. .

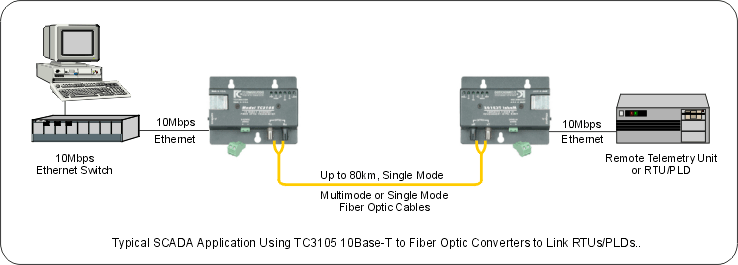

TC Communications Fiber Optic Media Converters- TC Fiber Media Converters - The TC3300R/S is typically used to interconnect 10/100/1000Mbps switching hubs, workstations or any other Ethernet, Fast Ethernet and Gigabit Ethernet compliant device at distances up to 100km.

Transition Networks Fiber Optic Media Converters-Transition Networks-10/100/1000 media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually. Fiber interface runs at 1000Base speeds, which enables users to connect Gigabit ports on fiber switches. Fiber connectivity options include SX optics and LX dual fiber with distances up to 125km or single fiber up to 40km. In addition to the standard 220 meters with standard SX optics, Transition Networks also offers a proprietary solution that will allow users to transmit up to 2km over multimode fiber (62.5/125µm) (xGFEB1024-100

Milan Media Converters- Milan-By utilizing lower cost 850nm optio-electronics, the 10/100BASE-SX fiber optic media converter provides compatibility with legacy 10BASE-FL devices while providing the lowest possible cost solution for fiber installation of up to 60 meters (100BASE-SX). This makes it ideal for building backbone and horizontal cabling applications where cost and 10/100 auto-negotiation are critical.

Signamax Fiber Optic Media Converters- Signamax-Signamax provides fiber optic media converter solutions that support data, voice, video and image transport over a wide variety of fiber optic and ethernet (other) transmission media. These fiber optic media converters convert a wide variety of data — from serial RS-232 through Standard, Fast, Gigabit Ethernet and SONET/SDH protocols. Conversions from twisted-pair copper cable, coaxial cable, multimode fiber and singlemode fiber, to other types of cable are all possible with the wide array of solutions from Signamax Connectivity Systems.

The MRV MC102 product line encompasses copper-to-fiber and fiber-to-fiber conversion units. On all of these converters, the fiber port(s) allow a choice of multimode or single mode fiber, single fiber operation, different wavelengths and power levels. EM316xSF - Single Fiber Media Converters MRV's Fiber Driver® family’s Single Fiber modules use unique technologies, which provide the ability to combine transmit (TX) and receive (RX) signals onto a single fiber strand. This effectively doubles the available fiber in a network, and eliminates the need for additional fiber installation. The Fiber Driver Single Fiber modules employs Single wavelength bi-directional technology in order to combine the TX and RX on the single strand.

• SPEED: Fiber optic networks operate at high speeds - up into the gigabits
• BANDWIDTH: large carrying capacity
• DISTANCE: Signals can be transmitted further without needing to be "refreshed" or strengthened.
• RESISTANCE: Greater resistance to electromagnetic noise such as radios, motors or other nearby cables.
• MAINTENANCE: Fiber optic cables costs much less to maintain.
